5.5Kva 48V MPPT Solar Charger Controller Wifi Hybrid Inverter with Output Voltage 220V 230V

Brand Name : SZSSTH

Model Number : SUF5000S4A1

Certification : CE RHOS BSI

Place of Origin : Guangdong, China

MOQ : 1PCS

Price : $208.00-258.00/PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 100000PCS/MONTH

Delivery Time : 7 Work Days

Packaging Details : Carton Box

Input Voltage : 48V

Output Voltage : 220V 230V

Output Current : Load

Product name : 5.5KW Hybrid Solar Inverter

AC Voltage : 230VAC

Display : LCD Display

Max PV voltage : 500V

Contact Now

Product Description: 3K&5KW Off-Grid Inverter

Key Features:

  • Wide Battery Compatibility: Supports most common low-voltage batteries (lead-acid and lithium).

  • Parallel Capacity: The 5KW model allows up to 6 units in parallel for expanded power needs.

  • High Charging Efficiency: Maximum solar charge current of 130A for rapid energy storage.

  • User-Friendly Interface: Equipped with an LCD screen for secure and intuitive interaction.

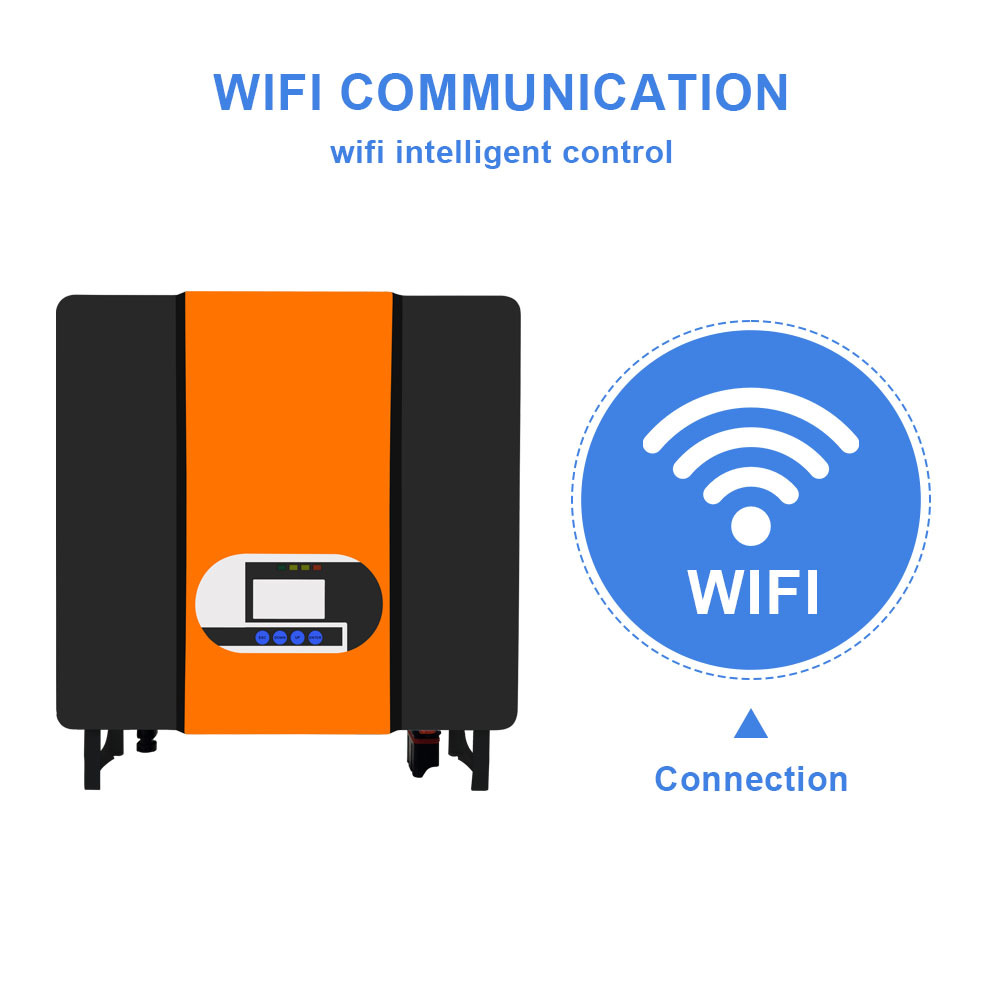

  • Remote Monitoring: Monitor and control the inverter via a mobile app (Wi-Fi/GPRS) with seamless BMS integration.

  • Intelligent Cooling: Smart fan design ensures optimal thermal management.

Technical Specifications:

  • Output Waveform: Pure sine wave for stable and clean power.

  • Efficiency: Peak efficiency of 93% for energy savings.

  • Protections: Comprehensive safeguards including PV/battery over-voltage/current protection, short-circuit protection, and Type II DC surge protection.

  • Durability: IP54-rated enclosure for dust and water resistance.

  • Flexible Input: Wide AC voltage range (170–260V) and dual frequency support (50/60Hz).

  • Compact Design: Lightweight (2.5–3kg) with dimensions of 300×450×110.5mm.

Ideal For: Off-grid solar systems, home appliances, and personal computing devices requiring reliable backup power.

Reliable. Efficient. Smart.
Power your independence with our advanced off-grid inverter technology.

SUF3000S4A1
SUF5000S4A1
BatteyInput
Battery Type
Li-lon/Lead-acid
Li-lon/Lead-acid
BatteryVoltage
24Vdc
48Vdc
Inverter Output
Nominal Power(W)
3000
5000
Nominal Apparent Power (VA)
3000
5000
Paralll Capacity
No
Yes.9 units maximum
AC Voltage Regulation (Battery Mode)
230Vac±5%@50/60Hz
230Vac±5%@50/60Hz
Surge Power (VA)
6000
10000
Eficiency (peak)
93%
93%
Waveform
Pure sine wave
Pure sine wave
Transfer Time
10ms (for personal computers), 15ms (for home appliances)
SolerCharge
Max.PV Array Power (W)
4000
6000


MPPT Range @OperatingVoltage
120Vdc-430Vdc
120Vdc-430Vdc
Number of Independent MPP Trackers
1
1
Number of Strings Per MPPT
1
1
Max,Input Current Per MPPT(A)
16
18
Max.PV Array Open Circuit Voltage (V)
500Vdc
500Vd
Max Solar Charge Current (A)
120
80
Ac Charger
Max.AC Charge Current(A)
120
80
AC Input Voltage (V)
230Vac
230Vac
Voltage Range (V)
170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)
Frequency Range(Hz)
50/60
50/60
General
UserInterface
APP+LCD Display+LED
Communication
USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact
Ingress Protection Rating
IP54
IP54
Dimension (W*H*D mm)
300*450*110.5
300*450*110.5
Weight (kg)
7.5 8
Relative Humidity
20%~95%
20%~95%
Max.Operating Altitude (m)
2000m, >1000m derating
2000m,>1000m derating
Operating Temperature (°C)
0~50
0~50
Storage Temperature (°C)
[-15~60]
[-15~60]
Protection
PV Over VoltageProtection
Yes
PV Over Current Protection
Yes
Battery Over Voltage Protection
Yes
Battery Over Current Protection
Yes
AC Surge Protection
Type II
Output OverCurrentProtection
Yes
Output Short Circuit Protection
Yes
Output OverVoltage Protection
Yes
